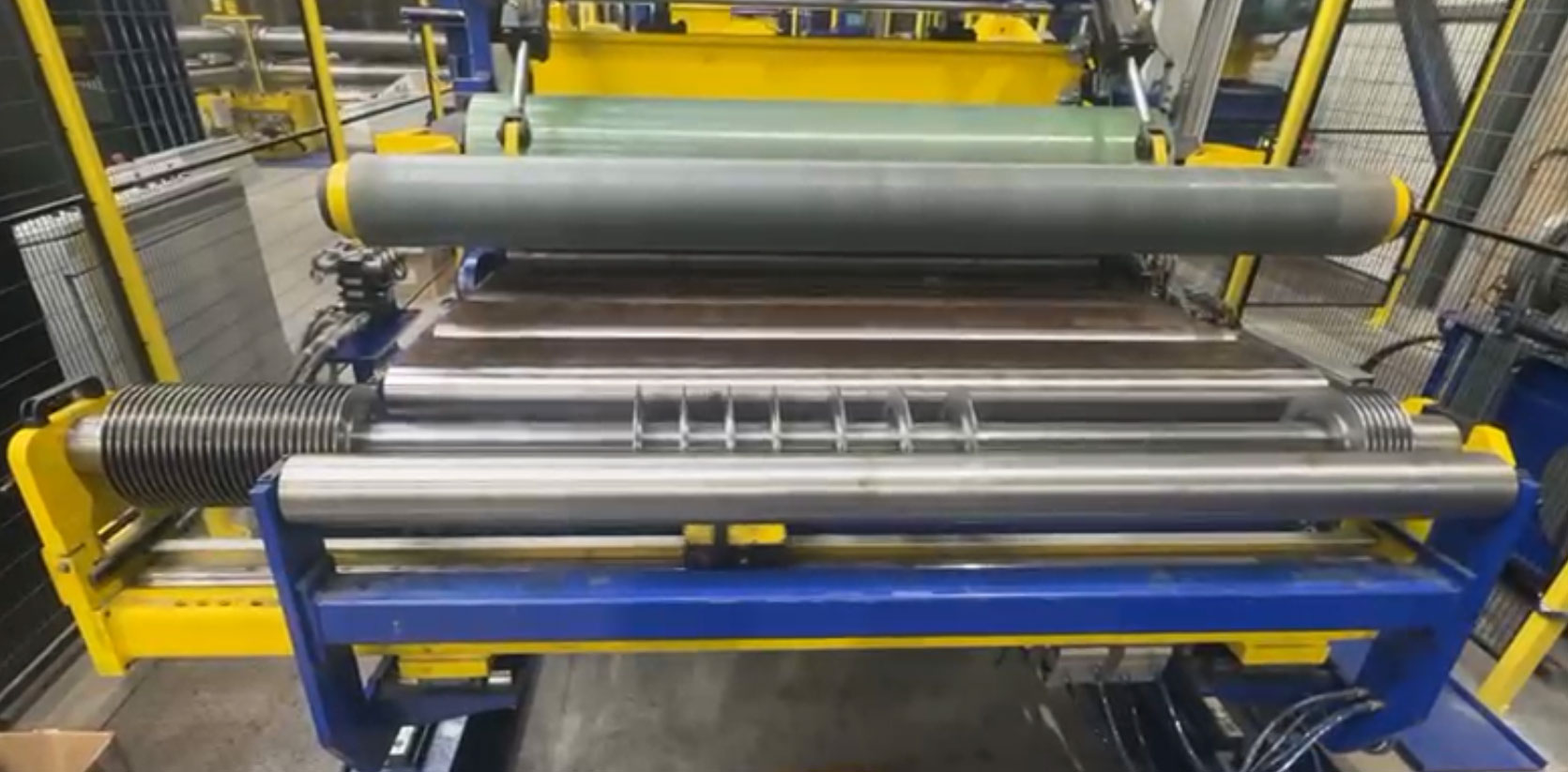

Automatic positioning separator disc in tensioner/double loop/recoiler
ATHADER has develop the automatic positioning separator discs for Slitting Lines.
This system can be installed in:
-
- Double loop.
- Tensioner.
- Recoiler.
Allowing a minimum setup time to change the position of the separator disc on each individual coil slitted.
Automatic positioning includes:
-
- CNC system to control the position of each disc.
- Pneumatic expansion shaft for locking the position of the discs.
- Shaker system to help the introduction of the strips into each separator disc.
- Lower inertia of the discs during processing.
Thaks to this system, the time of new positioning of the discs is less than 4 minutes.
Advantages:
- Automatic positioning of discs, without operator intervention.
- Avoid mistakes on the assembly of the separator discs.
- Automatic locking of the position discs.
- Low inertia system at process speed.
- Shake movement helps the alignment of slits into the separator discs, avoiding operator intervention.
- Every shaft with Automatic positioning, work simultaneously and provide new set up at the same time.
